ASROCK

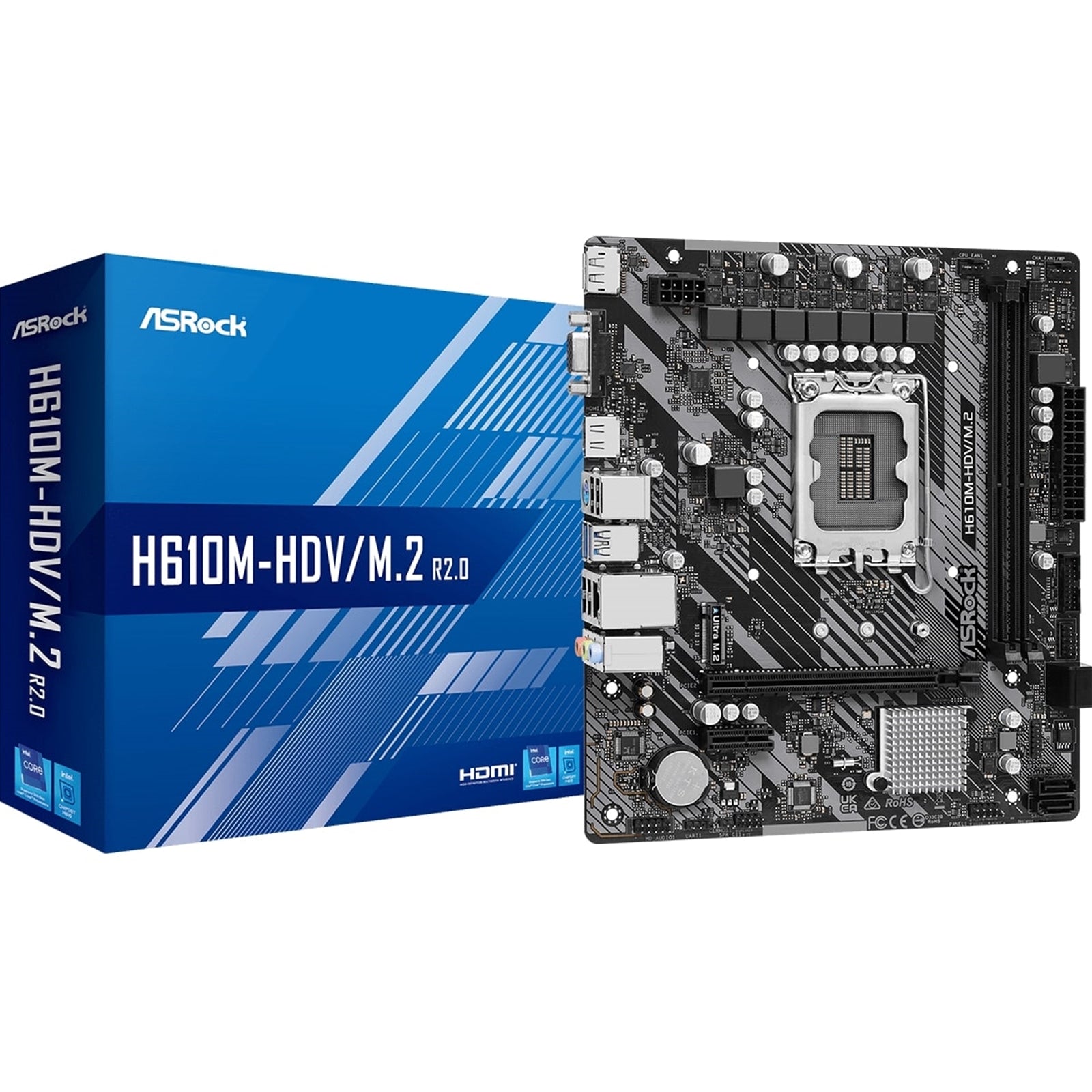

The Asrock H610M-HDV/M.2 R2.0 Super Alloy Micro ATX Motherboard is a Micro ATX motherboard for LGA1700 systems. It combines DDR4 memory, 1× M.2 storage support and Wi-Fi for a clean, capable PC build.
SKU: MBASR-H610MHDVM2 Manufacturer code: H610M-HDV/M.2 R2.0
Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
The product, manufacturer-supplied accessories and documentation included with the retail package.
| Brand | ASROCK |
|---|---|
| Product type | Motherboards |
| Manufacturer part number | H610M-HDV/M.2 R2.0 |
| Socket | 1700 |
|---|---|
| CPU Compatibility | Intel 12th/13th/14th Gen |
| Chipset | Intel H610 |
| Quiet Fan (Auto adjust chassis fan speed by CPU temperature) | CPU, Chassis/Water Pump Fans |
| Memory Slots | DDR4 - 2 Slots |
|---|---|
| Max. capacity of system memory | 64GB |
| M.2 Compatibility | PCIe 3 |
|---|
| Wi-Fi | No |
|---|
| HD Audio Jacks | Line in / Front Speaker / Microphone |
|---|
| Voltage monitoring | CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V |
|---|
| Form Factor | Micro ATX |
|---|---|
| Micro ATX Form Factor | 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
| Graphics Output Options | HDMI, DisplayPort, D-Sub |
|---|---|
| Three graphics output options | D-Sub, HDMI and DisplayPort 1.4 |
| Fan Tachometer | CPU, Chassis/Water Pump Fans |
| Fan Multi-Speed Control | CPU, Chassis/Water Pump Fans |
| Brand | ASROCK |
|---|---|
| Manufacturer code | H610M-HDV/M.2 R2.0 |
| EAN | 4710483939860 |
| Package weight | 1.35 kg |
| SKU | MBASR-H610MHDVM2 |
